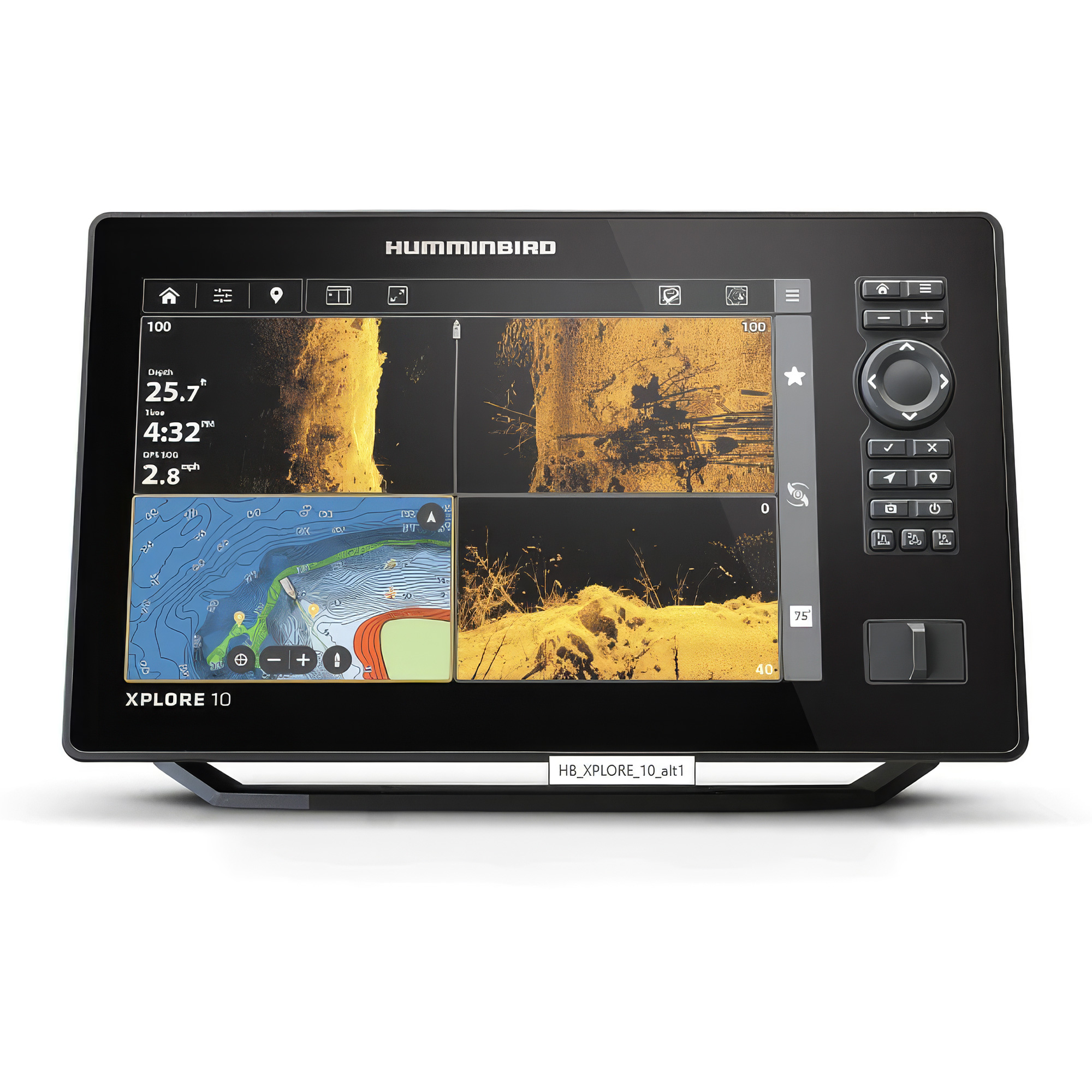

Humminbird Xplore 10 CMSI+ - ID: 11327 - ORG ID: 2218

The XPLORE Series is lightning-quick and laser-focused on anglers’ favorite features. Find your fishing spots faster with included LakeMaster and CoastMaster charts. Sync 10,000 fish spots with custom colors and icons to your phone through a new waypoint management system. Get the clearest picture of what’s below with compatibility for our best sonar, including MEGA Live 2 forward-facing sonar. Connects to Minn Kota products and control them on command – from enabling Advanced GPS navigation to deploying shallow water anchors – with One Boat Network compatibility. With our most advanced technologies and easy-to-use interface, there’s more to XPLORE.

FEATURES

• Full-HD Display with Cross Touch® interface: XPLORE delivers eye-popping detail with a 1280 H x 800 V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.
• MEGA Side Imaging+: See the world below like never before with a crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.
• MEGA Down Imaging+: Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
• Dual Spectrum CHIRP Sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• Includes LakeMaster and CoastMaster VX map card with U.S. and Canada regions standard data.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
• One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
• Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and display of smartphone notifications on your Humminbird.
• NMEA 2000 Networking Built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
• 2-Year Limited Warranty

Specs

Model XPLORE 10 CMSI+ Fish Finder

Product Code 412010-1

Series XPLORE

Display Size - Diagonal 10 in

Length 8.46 in | 18.41 cm

Height 14.15 in | 30.73 cm

Width 3.4 in | 8.38 cm

Weight 6 lb 4.96 oz | 2.15 kg

Display Pixel Matrix 1280H x 800V

Transducer Included XM 14 HW CMSI T

Compatible With Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2

Features Touch Screen, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Built In Mapping, MEGA Imaging+, Wi-Fi, MEGA Imaging

Memory Card Slot Dual Micro SD

Sonar-Standard Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+

Sonar-Optional 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low

CHIRP - Frequencies Supported Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)

Sonar-Frequencies Supported 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA

Depth-Sonar 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)

CHIRP - Imaging Frequencies Supported 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)

Depth-Down Imaging 200 ft (MEGA), 400 ft (455 kHz)

Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 400 ft (MEGA)

Interface Touch Screen, Keypad Control

Power Input 10.8-20 VDC

Power Output Peak-to-Peak 8000 Watts

Power Output RMS 1000 Watts

Screen Snap Shot Included

Sonar Recording Included

Mount-Standard Gimbal

Mount-Standard Size 12.098 in W x 7.702 in H x 3.891 in D

Mount-Optional In-Dash Mounting Kit

Mount-Optional Size 12.098 in W x 7.702 in H x 3.891 in D

Transducer Mount Location Transom

GPS Chartplotting Included

GPS Receiver Internal

GPS Trackplotting Not Supported

Waypoints, Routes, Tracks/Points 10,000, 50, 50/20,000

360 Imaging Compatibility Yes

MEGA Live Compatibility Yes

Humminbird Basemap Included

LakeMaster Compatibility Yes

CoastMaster Compatibility Yes

Navionics Gold/HotMaps Compatibility Yes

Navionics Platinum+ Compatibility Yes

Platinum Compatibility Yes

Minn Kota Advanced GPS Navigation Compatibility Yes

Minn Kota i-Pilot Link Compatibility Yes

Minn Kota Talon Shallow Water Anchor Compatibility Yes

Radar Compatibility Yes

5-Port Ethernet Switch Compatibility Yes

AIS Compatibility Optional

Autopilot Compatibility No

Heading Sensor GPS Compatibility No

Heading Sensor GPS (NMEA 2000) Compatibility Yes

NMEA2000 Included

Target Separation 2.5 in

Upgradable Software Yes

View Preset Keys Yes

X-Press Menu System Yes

Custom Digital Readout Yes

Custom View Selections Yes

Display Colors Grayscale 24-Bit

Display Type Color TFT

Speed Included

Temperature Built In

Temperature Alarm Yes

Temperature Graph Yes

HDMI Compatible No

Warranty Two-Year Warranty
